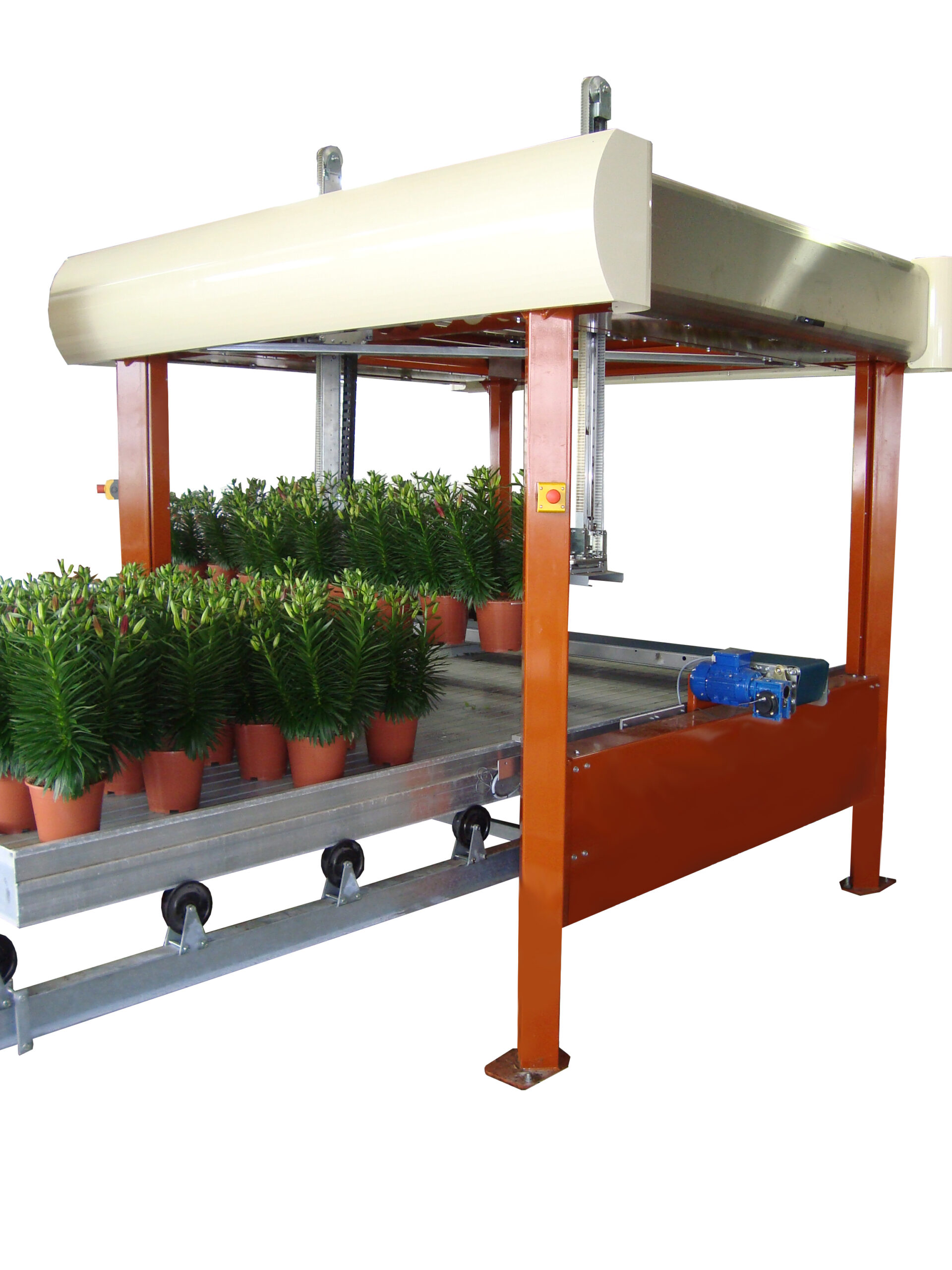

Javo Linear Recta
Javo’s Linea Recta has been designed to move potted plants with precision and speed to deliver the maximum return on your investment. The machine has sturdy horizontal and vertical guide systems to ensure accuracy when the pots are being transported.
A touch screen on the machine keeps the operator informed at all times, meaning that it is never down for long periods of time. The user-friendly, simple operation is only one of the benefits of the Linea Recta. Once requirements have been inputted into its system, the robot is able to calculate and visualise possible patterns, offering numerous possibilities and flexibility.
- Overview
- Video
- Downloads
Overview
Advantages
- Colour touch screen
- Industrial servo drives
- New, linear technology
- Excellent accuracy in placing and picking up
- Very high capacity possible
- Expertly designed and user-friendly technology
Video
Video
Coming soonDownloads
Technical specification / manual
SPECIFICATION
Suitable for:
round pots
Capacity:
up to 900 strokes per hour (depending on machine configuration, pot and soil)
Length:
1.875 m
Width:
2.188mm
Height:
2.020mm
Voltage:
400V 50Hz 3~ +N +PE / 480V 60Hz 3~ +PE
Power:
9,3kW
Power connection:
16A, 5 pins CEE plug
