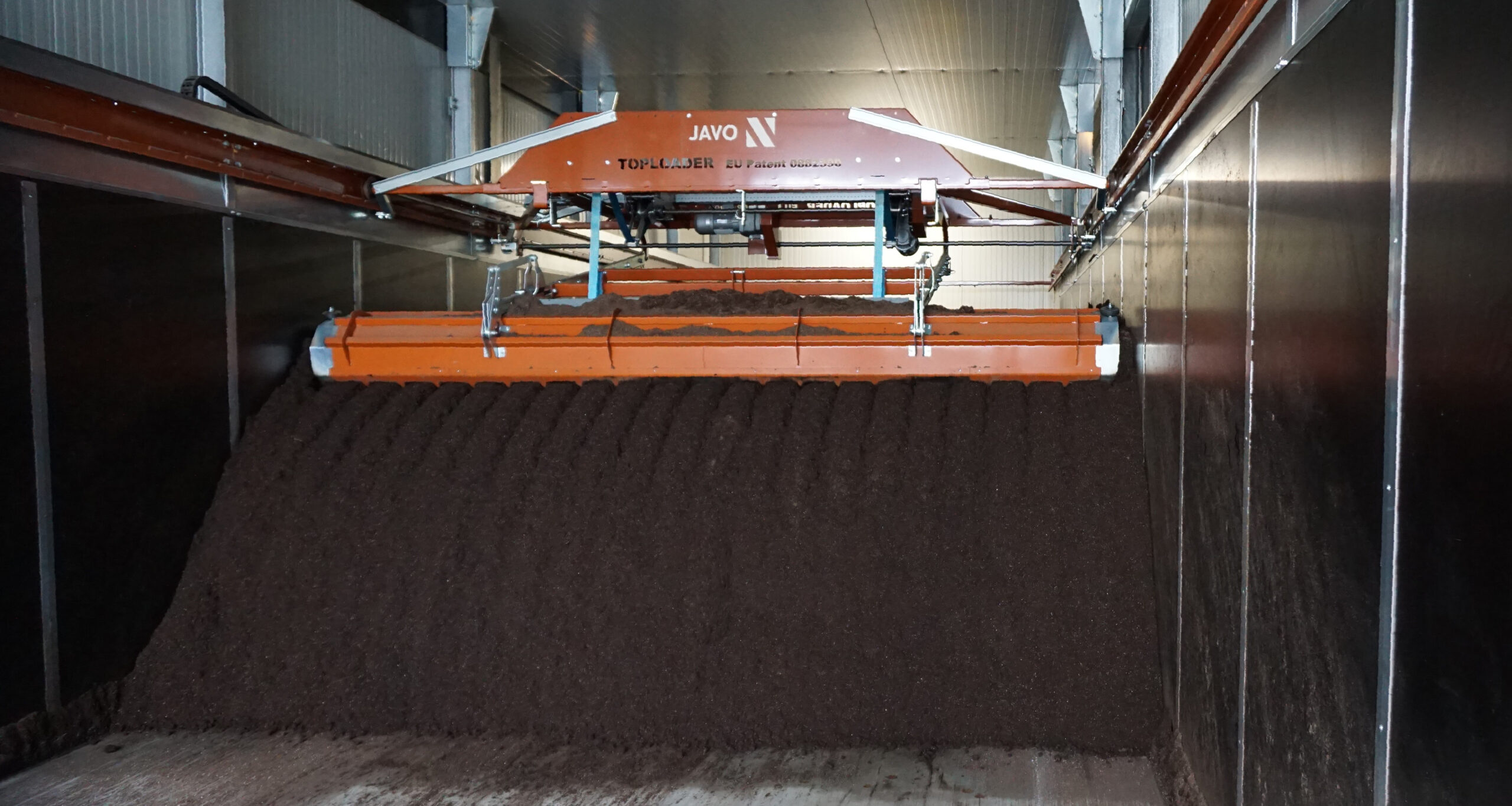

Javo Toploader
As a solution for storage and distribution of loose substrate, wood chips, and bulk materials, the Javo Toploader guarantees an efficient operation with minimal maintenance needed.
The bunker can be loaded very efficiently to reduce any loss of storage capacity, and the smooth sidewalls prevent any substrate from remaining in the bunker.
Toploader dimensions are adjustable depending on requirements and capacity needs, with additional flexibility to be mounted onto an existing construction or a new build to meet your requirements.
- Overview
- Video
- Downloads
Overview
Advantages
- Very high capacity possible, depending on model
- Complete and very sustainable system
- Low energy consumption
- Very low maintenance costs
- No restrictions in length
- Suitable for a wide variety of bulk material, like wood chips, bark and other biomass, agricultural and waste products.
- Different types of side walls possible
- Smooth side walls prevent any material from being left in the bunker
- Minimal loss of storage capacity
- Dimensions are adjustable depending on requirements and capacity
- Minimal ground works required
- All working parts away from the bulk material, for an easy reach for maintenance
Video
Video
Coming soonDownloads
Technical specification / manual
SPECIFICATION
Suitable for:
wood chips, substrate and other (waste) bulk material
Sizes:
-
Length:
No length restriction
Width:
up to 6.000 mm
Height:
about 4.400mm, drive height 4.200mm
Voltage:
400Volt 50Hz 3~+N+PE / 220Volt 60Hz 3~+N+PE
Power:
1,5kW
Power connection:
16A, 5 pins CEE plug
